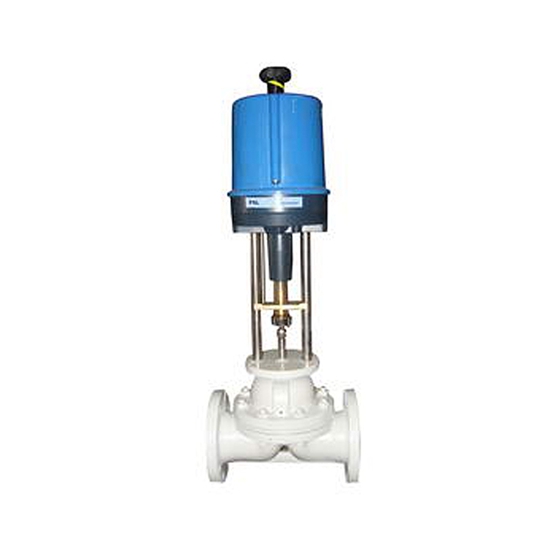

ZDLT electric diaphragm valve

關注次數:

所屬類別:Special fluorine regulating valve

ZDLT electric diaphragm valve by the PS and 3610 series of straight travel electric actuator and valve. Electric actuator for the electronic integrated structure, a servo amplifier, the input control signal (4-20mADC or 1-5VDC) and the power to control the valve opening, to adjust to working parameters of pressure, flow, liquid level, temperature etc.. Is sensitive, simple connection, big flow, small volume, high accuracy regulation. The control precision and has better performance than DKZ.
Diaphragm valve body flow smoothly, a throttling element for the elastic diaphragm, valve without stuffing box cover. The valve flow capacity than the general valve and no leakage, the allowable pressure shut-off valve can be used within the scope of. Condition of the valve is suitable for high viscous fluid, suspended particles, fiber media and toxic, corrosive medium.


Main technical parameters:

Nominal diameter mm1520253240506580100125150200250
To allow pressure(MPa)1.00.891.01.01.01.01.00.60.380.150.057
The rated flow coefficientKv812163860689015030050060012002000
Nominal pressure(MPa)1.0
Trip(mm)1016254060
Flow characteristicssimilar to fast open (adjustable)
Flange sizeJB78-59 cast iron flanges, steel flangesJB79-59
The electric actuator of modelPSLPSL-201PSL-202PSL-204PSL-208PSL-312
361L361LSA-08
361LXA-08
361LSA-20361LSB-30361LSB-50361LSC-65
Explosion proof type361LXA-20361LXB-30361LXB-50

The implementation of the main technical parameters of mechanism:

Ratedoutput power Nspeed mm/sTechnical parameters
PSL361LPSL361LPSL361LPSL361L
201361LSA-08
361LXA-08
1000800
800
0.254.2
4.2
Power supply: AC220V 50Hz
Input signal: DC4-20mA
DC1-5V
(shielding line signal line)
The output signal: DC4 ~ 20mA
Protection grade: IP67
With the handwheel
Power supply: AC220V 50Hz
Input signal: DC4-20mA
DC1-5V
(shielding line signal line)
The output signal: DC4 ~ 20mA
Protection grade: IP55
The explosion-proof symbol: Exd II BT4
With handle
202361LSA-20
361LXA-20
20002000
2000
0.502.1
2.1
204361LSB-30
361LXB-30
45003000
3000
0.503.5
3.5
208361LSB-50
361LXB-50
80005000
5000
1.001.7
1.7
312361LSC-651200065000.602.8
325361LSC-9925000100001.02.0

The performance index:

project index
Basic error%≤±3.5
Differential%≤2.5
Dead%≤3.0
Always point bias %±2.5
Rated stroke deviation %±2.5
Pure lag≤IS

Allow the discharge L/H

Rubber diaphragm "0", poly four vinyl diaphragm is 0.5% × valve rated capacity (allowable differential pressure water)

Insulation resistanceNot less than 20M
Damping characteristicsNot more than 3 and a half weeks

Lining and diaphragm material:

The valve body material

Lining material

Diaphragm material

The use of temperature

Applicable occasions

Cast iron HT200

No

Chloroprene rubber

0~65℃

Non corrosive medium, water and abrasive, the slurry medium

Cast iron HT200

Poly three vinyl fluoride

Fluorine rubber

-15~150℃

Strong acid, strong alkali, strong oxidizing agents and organic solvents, not suitable for slurry medium

Cast stainless steel
ZG1Cr18Niti

No

Fluorine rubber

-20~200℃

General acid, alkali and organic solvent media

Size and shape:

The path(mm)202540506580100150200250
L(mm)181184222254276298352451600720
H1(mm)67728792105110127174209300
With PSLH(mm)738750765767845857875102510451252
D(mm)176225
Weight(KG) 15172429496182150211370
With 361LH(mm)501513650652770782800108011251345
D(mm)225310
Weight(KG) 23243944647697203264418
